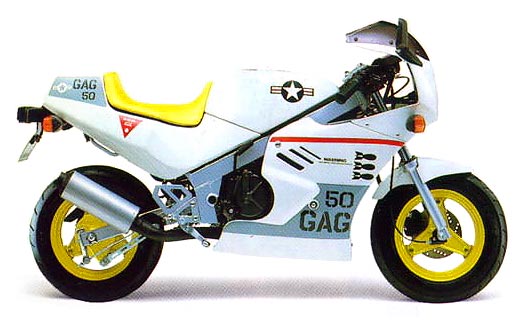

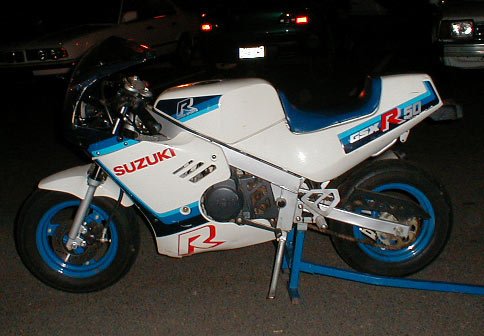

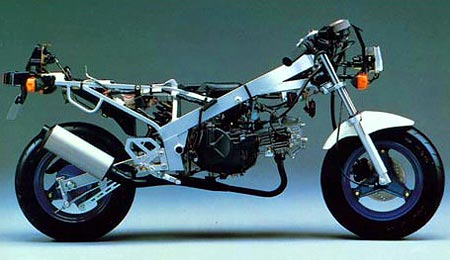

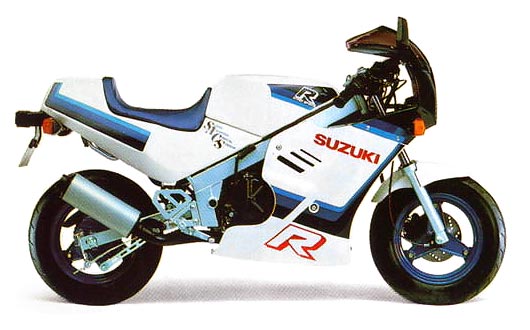

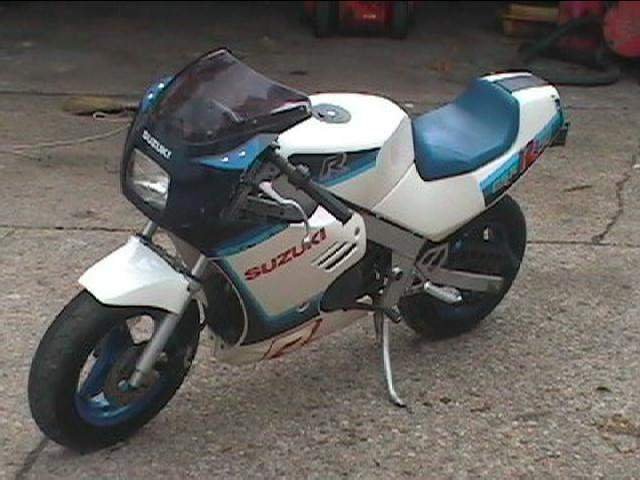

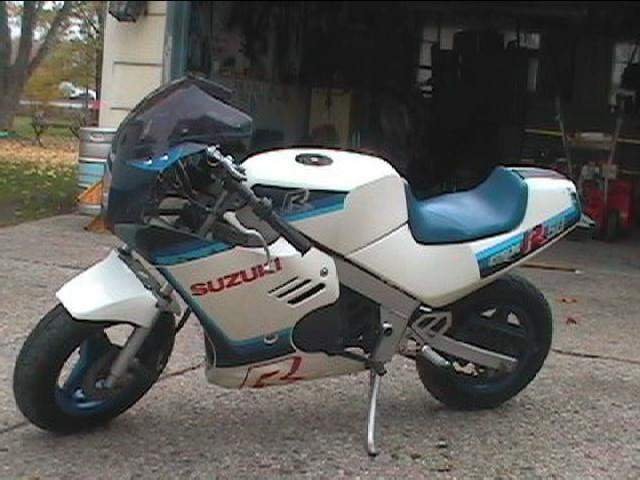

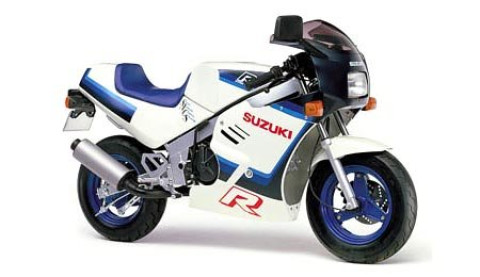

Suzuki GAG / GSXR 50
| Main info | |
|---|---|
| Make | Suzuki |
| Type | GAG / GSXR 50 |
| Year built | 1986 |
| Estimated price | — |
| Engine | |
| Stroke | 4 |
| Cylinders | 1 |
| Displacement | 49 cc |
| Bore and stroke | 39.0 x 41.8 mm |
| Compression | 10.3:1 |
| Cooling | Air |
| Lubrication | — |
| Carburetor | Mikuni VM13 |
| Ignition | Suzuki PEI (Pointless Electric Ignition) |
| Gears | 4 |
| Sprockets | — |
| Starter | Kickstart |
| Suspension & brakes | |
| Front suspension | — |
| Rear suspension | — |
| Front brake | — |
| Rear brake | — |
| Front tire | 3.50-10 2PR |
| Rear tire | 3.50-10 2PR |
| Dimensions | |
| Length | — |
| Width | — |
| Height | — |
| Wheelbase | — |
| Rake | — |
| Trail | — |
| Seat height | 610 mm |
| Dry weight | 63 Kg |
| Fuel tank | 7 L |
| Oil tank | — |
| Top speed | 85 km/h |
| Performance figures | |
| Horsepower | 5.2 @ 7000 rpm |
| Kilowatts | — |
| Torque (Nm) | — |
